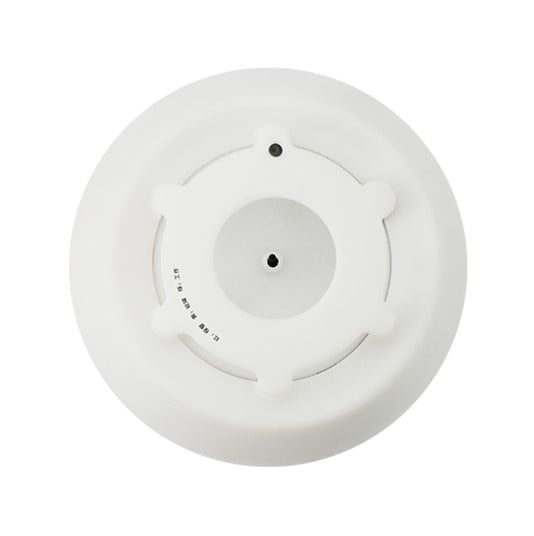

TC5402W wireless heat detector is an intelligent household fire detector with high- precision thermostor as the sensor, which can be used together with the wireless fire alarm control panel. The detector uses advanced wireless transceiver technology and high-integration micro-processing chip to process data.
https://www.vedardsecurity.com/wireless-heat-detector-p-99
Technical Data
All data is supplied subject to change without notice. Specifications are typical at 24V, 25℃ and 50% RH unless otherwise stated.
Battery CR17450 3V
Operating current monitoring current≤3uA , alarm current≤18mA
Coding method automatically assigned when networking Radio frequency transmit power<20dBm
Frequency band 470MHz
Communication distance ≤50m
Communication method 470MHz FSK coded
bidirectional Operating environment temperature 10℃~+55℃
relative humidity ≤95%
Dimension 100mm*54mm(with base)
Weight 110g
Using advanced wireless transceiver technology, signal transmission can be completed without wiring, and the project is simple and convenient. It adopts 470MHz communication and FSK coding technology, which has strong anti- interference ability and long transmission distance Low-voltage battery detection, reminding the user to replace the battery when it is insufficient to maintain the normal operation of the detector.
